Aluminum solar panel adjustable angle
MODEL: SPMB-008

Aluminum solar panel adjustable angle

Bulk Pricing

Volume discounts available for wholesale and distribution orders.

Technical Specifications

  • Function:Aluminum solar panel adjustable angle
  • Structure: Triangle Bracket
  • Function: Angle Adjustable Aluminum solar panel Pole mounting bracket
  • Type: Flat Roof mounting bracket
  • Material: Aluminum 6005-T5 &SUS304
  • Certificate:AS/NZS 1170.2

Product Details

Want to see it mounted in the field? Watch installation videos for this product line.

Product Overview

Adjustable angle aluminum solar panel mounting system with 15-30° tilt, extending from 14-27 inches. Compatible with 50W to 400W panels for RV, marine, and flat roof installations.

Key Features

  • 15-30° Adjustable: Adjustable tilt angle for optimal seasonal sun exposure and maximum energy collection.
  • Extends 14-27": Adjustable extension length from 14 to 27 inches for flexible positioning.
  • 50W-400W Range: Compatible with solar panels from 50W to 400W for versatile use.
  • Aluminum Build: Rust-free aluminum construction for durability in outdoor environments.
  • Seasonal Optimization: Adjust angle by season to maximize solar panel output year-round.

Specifications

  • Material: Aluminum
  • Tilt: 15-30°
  • Extension: 14-27 in
  • Panel Range: 50-400W
  • Application: Flat Roof / RV / Boat
💼 OEM/ODM services available. Custom specifications, materials, and branding supported. Flexible MOQ for B2B orders. Contact us for volume pricing.

Adjustable angle bracket dimensions

Adjustable aluminum solar panel mounting bracket

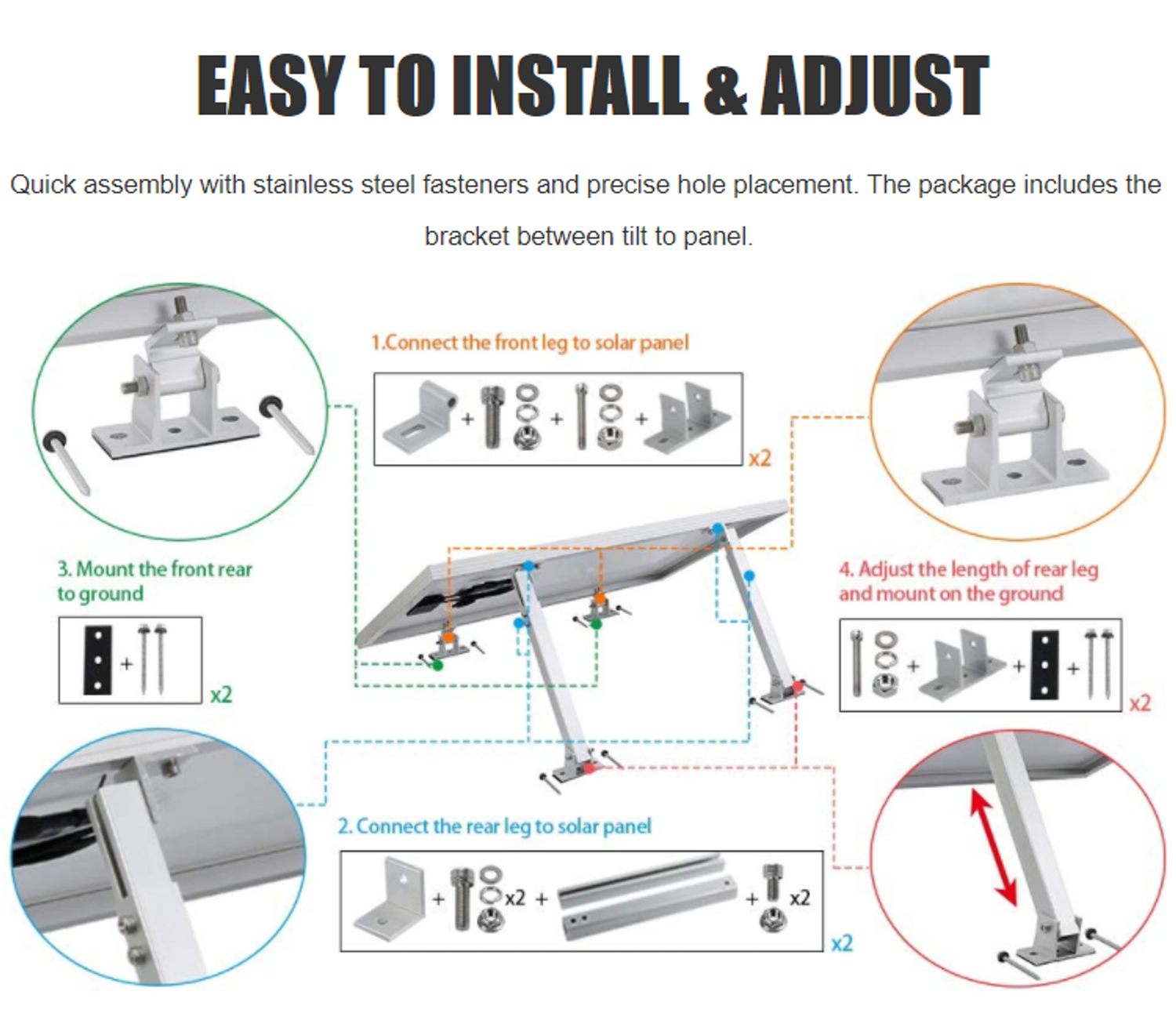

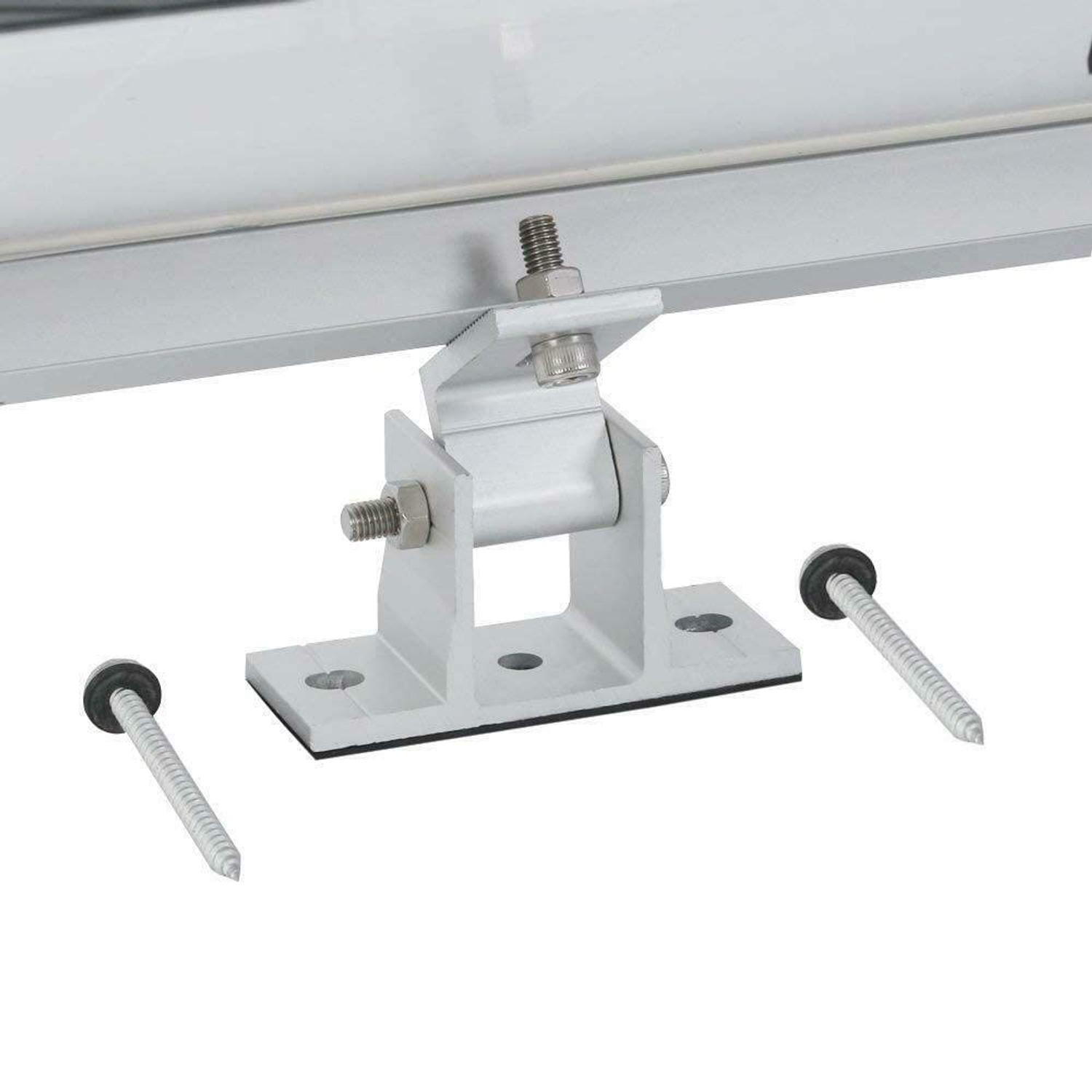

Tilt angle adjustment mechanism

Adjustable aluminum solar panel bracket tilt angle detail

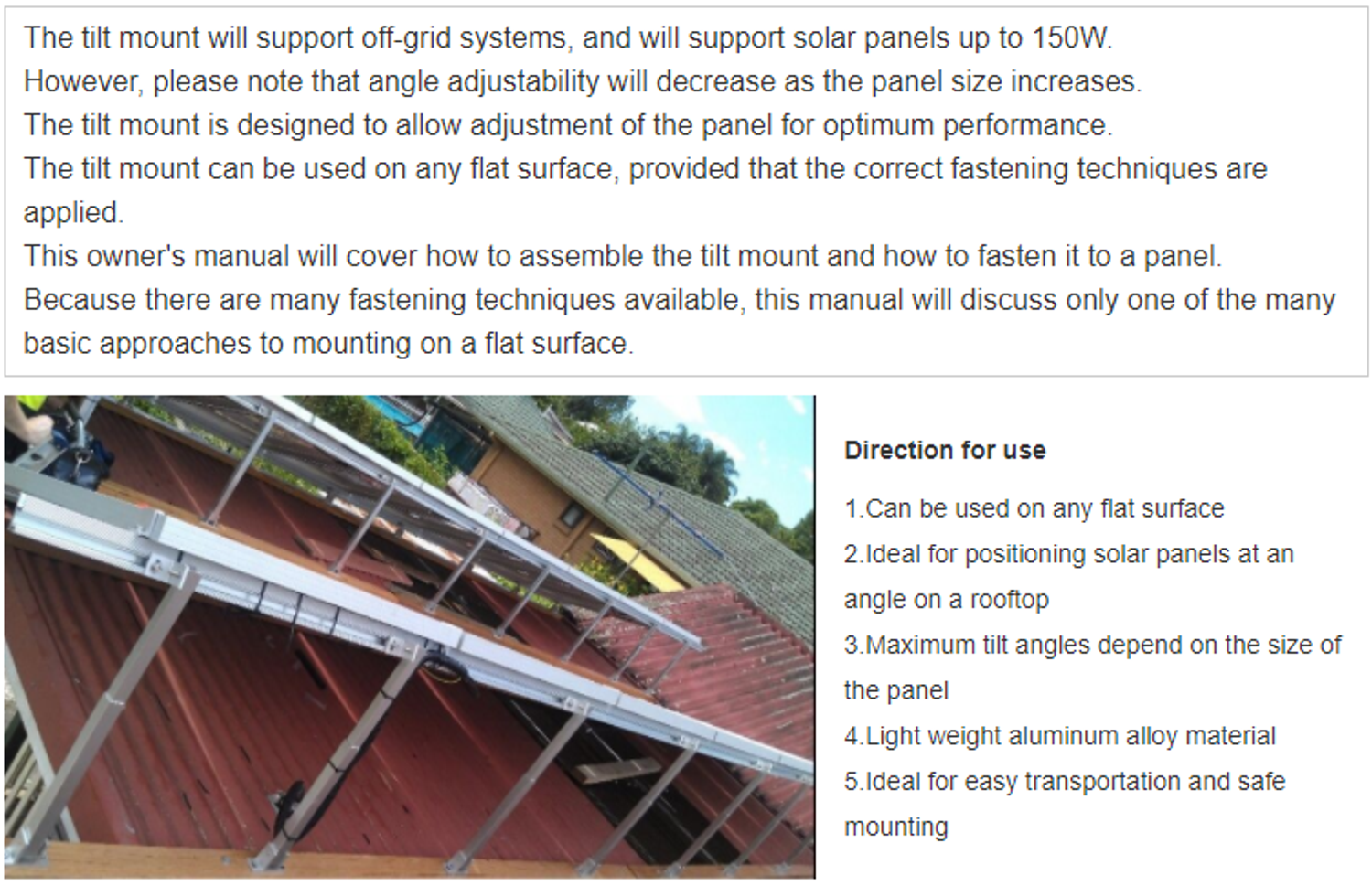

Bracket on flat roof installation

Adjustable aluminum solar panel bracket dimensions

Multiple surface mounting options

Adjustable aluminum solar panel bracket installed on roof

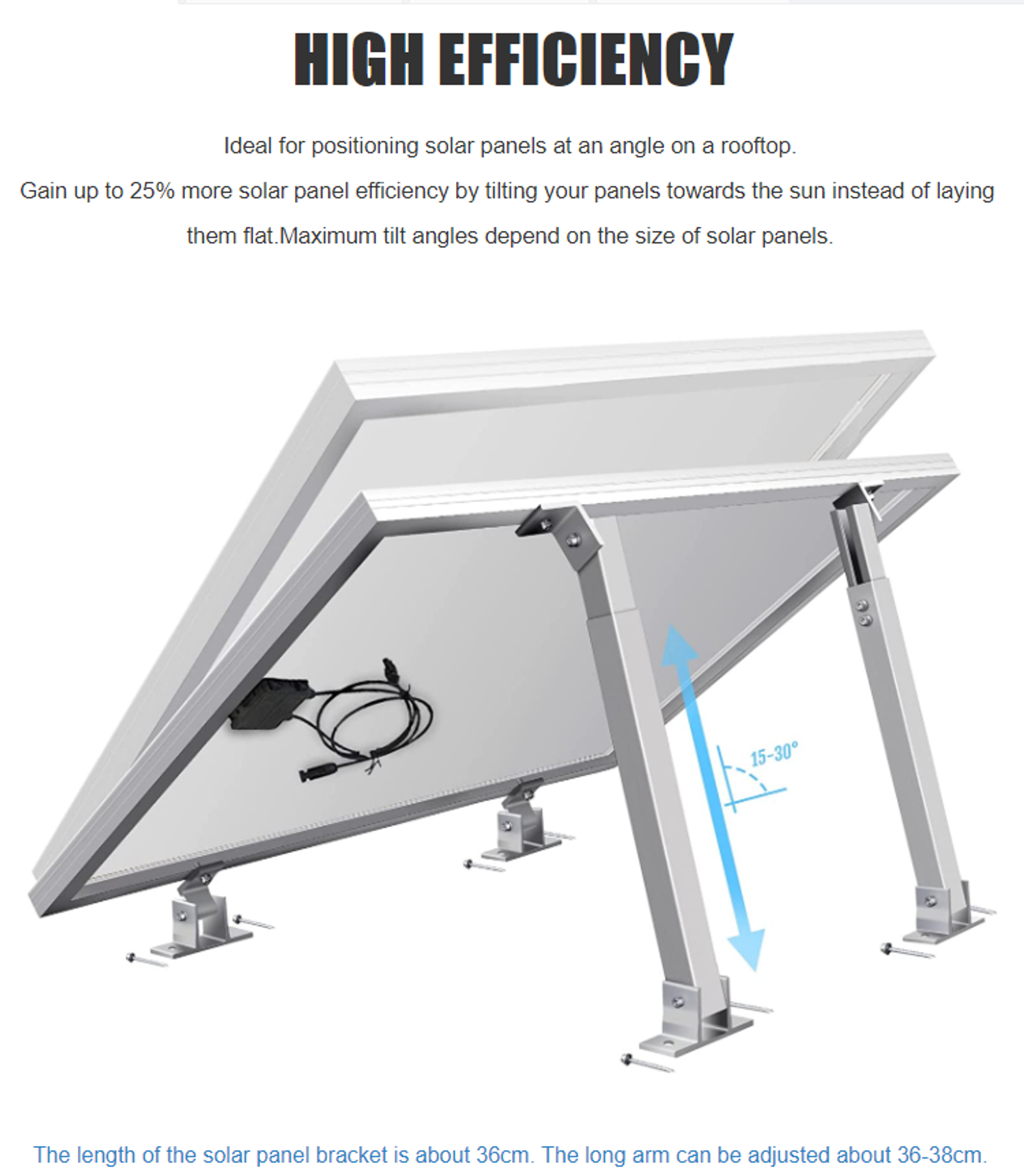

Bracket supporting solar panel

Adjustable aluminum solar panel bracket packaging
